Step 4: Turn the exact Kubara Git revision into immutable OCI

Your goal

The result is deliberately not one giant platform artifact. It contains one target-neutral package per reusable component definition, one target-neutral package per effective component/configuration set, and one platform index that references their exact manifest and layer digests. Destination bindings, cluster facts, and secrets are not placed in those portable packages.

What stays Kubara

• The input is still Kubara's committed config.yaml, generated component and cluster trees, ordinary overrides, locks, renders, and wiring facts.
• The Git commit remains the portable, independently reviewable hand-off.
• Kubara remains the composer. The importer consumes Kubara's result; it does not regenerate it, reinterpret it with AI, or replace it with a new schema.
• Application source is still separate from the platform hand-off and enters the journey in Step 6.

What ConfigHub adds

• Exact-source and complete-scope verification before packaging.
• Component-first packages whose retained versions can be governed separately from one platform selection.
• Content-addressed OCI publication with exact remote manifest and layer verification.
• A target-neutral PlatformDigest for the portable platform and a separate BindingDigest for the selected ConfigHub destination.
• Refusal of dirty, mutable, ambiguous, mismatched, credential-shaped, or concurrently changed inputs.

The implementation is deterministic code. AI is not part of the required import path.

Before you start

Complete Steps 1–3 and have all of the following:

• a clean detached checkout at the full pushed Git object ID;
• the prepared platform subtree bound by its preparation-receipt.yaml and checksums.txt;
• a passing external secret-scan report stored outside that checkout;
• a reviewed copy of portable-request.example.yaml whose source commit, selected path, layout, scan attestation, and untagged OCI repository base are exact; and
• oras authenticated to that repository base.

No ConfigHub organization, context, Space, Target, runtime observation, target fact, or secret is required for this step. Portable compile and publication now happen before the user chooses a ConfigHub destination. The organization and each cluster-local Argo runtime are selected, inspected, and bound explicitly in Step 5.

The exact importer contract and full field reference live in examples/kubara/git-import/README.md. Start from portable-request.example.yaml, but never use its example hash, repository, commit, path, or OCI base as real authority. Step 5 starts separately from request.example.yaml when a destination is selected.

Run the repository commands below from the helm-expt repository root.

For the commands below, substitute your controlled paths:

export KUBARA_CHECKOUT=/absolute/path/to/clean-detached-checkout
export KUBARA_PORTABLE_REQUEST=/controlled/import/portable-request.yaml
export KUBARA_PORTABLE=/controlled/import/portable
mkdir -p "$KUBARA_PORTABLE"

Do not put the controlled import directory inside the Git checkout.

4.1 Review the target-neutral request

The portable request is intentionally small. Confirm that it contains only:

• the immutable repository URL, full Git object ID, and selected path;
• the supported Kubara layout beneath that path;
• the exact scanner name/version, report SHA-256, source commit, scope path, and explicit opaque-file review; and
• an untagged publication.catalogOCIBase.

Do not copy destination slugs, UUIDs, ConfigHub context, runtime observations, target facts, tokens, or secret values into this request. Those facts belong to the separate destination request and binding created in Step 5.

4.2 Compile, inspect, and reproduce the portable package set

Compile outside the checkout, then regenerate and compare every portable semantic output byte:

node scripts/import-kubara-git-revision.mjs --compile-portable \
  --request "$KUBARA_PORTABLE_REQUEST" \
  --checkout "$KUBARA_CHECKOUT" \
  --output "$KUBARA_PORTABLE"

node scripts/import-kubara-git-revision.mjs --verify-portable \
  --request "$KUBARA_PORTABLE_REQUEST" \
  --checkout "$KUBARA_CHECKOUT" \
  --output "$KUBARA_PORTABLE"

Review platform-lock.yaml, portable-package-set.json, the local payloads, and portable-checksums.txt. The portable directory must not contain destination-binding-lock.yaml or target-facts-required.yaml. A changed Git object, selected byte, request field, or generated output causes verification to fail.

4.3 Publish and verify the immutable OCI set

Hold exclusive single-writer control of the reviewed OCI repository base for the complete publication operation, then run:

node scripts/import-kubara-git-revision.mjs --package-portable \
  --request "$KUBARA_PORTABLE_REQUEST" \
  --checkout "$KUBARA_CHECKOUT" \
  --output "$KUBARA_PORTABLE"

The importer inspects, publishes, and post-inspects every remote artifact. A pre-existing content-addressed reference is reused only when its artifact type, media type, layer count, digest, and size all match. A conflict is refused. No ConfigHub or cluster mutation occurs.

4.4 Keep the portable result independent of its destination

At this checkpoint the exact Git revision and portable OCI set can be carried to a ConfigHub organization selected later. Step 5 performs a separate read-only --inspect-destination, then --bind proves that recompiling the same Git source produces byte-for-byte identical portable members and the same PlatformDigest. The binding writes a different BindingDigest for the selected organization and explicitly keeps it outside OCI.

This split is the adoption promise made executable: Kubara's Git result stays portable; OCI is its immutable delivery form; ConfigHub destination authority is added without recompiling the platform for one organization.

Expected artifacts

The controlled output contains:

The destination-bound import-plan.json, destination-binding-lock.yaml, target-facts-required.yaml, acceptance.json, checksums.txt, and portable-binding-receipt.json do not exist until Step 5 runs --bind into a separate output directory.

For the committed four-cluster fixture, the isolated acceptance suite produces 22 component/config packages plus one digest index. That number describes the fixture, not a required count for every Kubara platform.

Machine checkpoint

Anyone can exercise the complete importer contract without a live organization, registry, or cluster:

npm run kubara-git-import:self-test

Expected final line:

Kubara Git importer self-test passed: exact Git compile, 22 component/config OCI packages plus digest index, pulled-payload verification, pinned delivery topology, 12 platform Argo Applications, four root releases, second-run zero actions, and adversarial refusals

This is current deterministic, isolated evidence. The self-test uses fake Git, OCI, and ConfigHub surfaces. It proves the importer contract and its refusals; it does not prove that your selected live organization has been changed or that any cluster is healthy.

For a real publication, also require oci-publication-receipt.json.status.result to equal pass, confirm that targetFactsIncluded is false, and retain the receipt with the reviewed portable request and Git object ID.

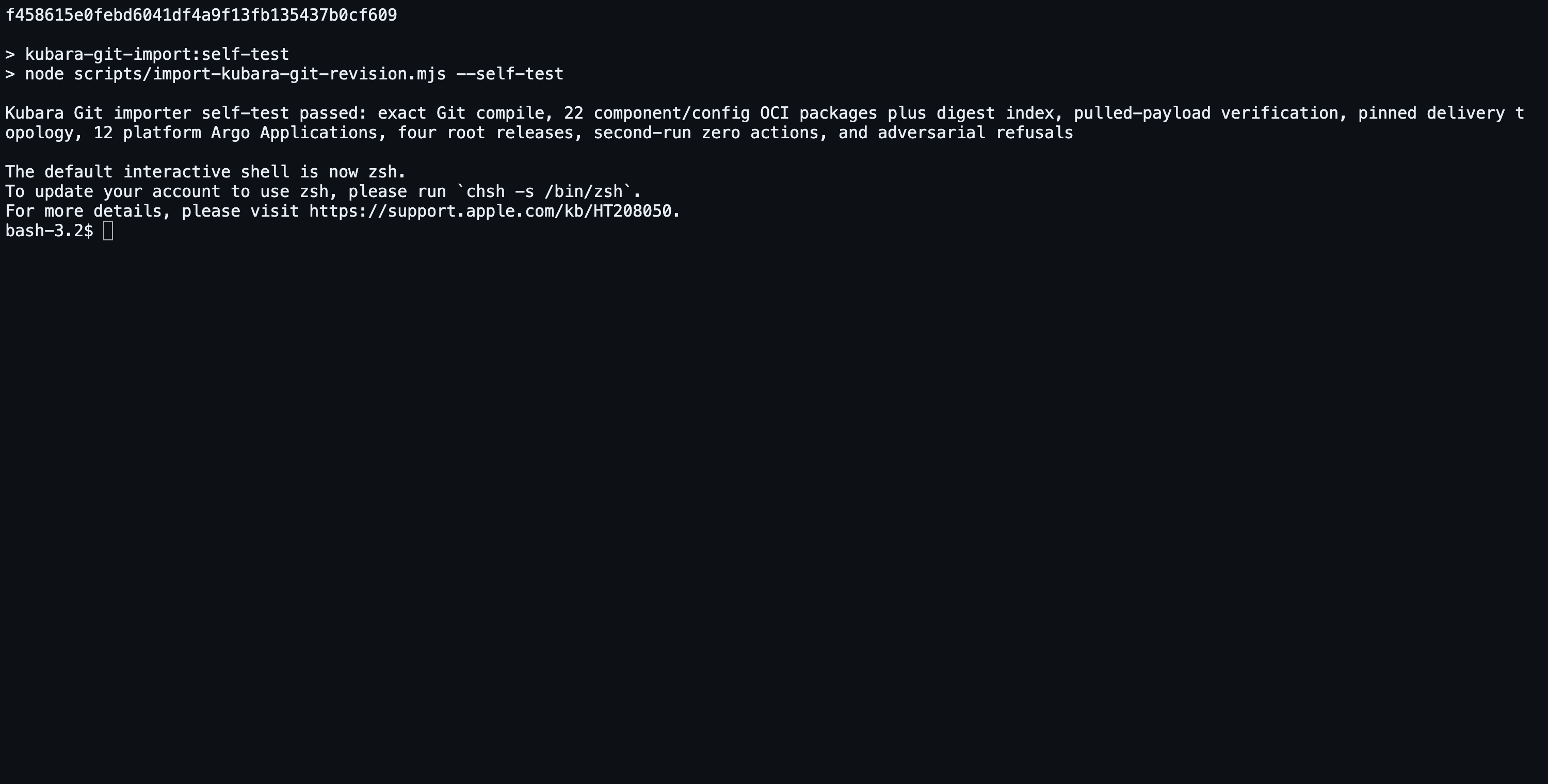

Screenshot to capture after the checkpoint passes

Do not manufacture a registry screenshot for the isolated self-test. This chapter owns exactly one future adoption frame, separate from the ConfigHub GUI tour.

After the isolated self-test checkpoint and the complete source-current documentation gate pass, capture one real terminal/workspace frame from that same self-test run. It must show the complete passing final line, including the reported 22 component/config OCI packages, digest index, pulled-payload verification, pinned delivery topology, zero-action second run, and refusal cases. The caption must name the Git commit and say explicitly that these are deterministic fake Git, OCI, and ConfigHub test surfaces. This frame proves the importer contract and isolated package/index behavior; it does not claim a live registry publication, ConfigHub materialization, or cluster health.

Embed it at the declared path only when the six-frame adoption receipt binds the exact source commit and Git trees, prepared hand-off receipt, importer implementation, release-acceptance contract, image digest, UTC capture time, visible package/index identities, sensitive-value handling, caption, and claim boundary. It must not be presented as the real-publication receipt described above. Until then, leave the hook unexpanded.

Troubleshooting

Safe to stop

It is safe to stop after portable compile/verify or package. None of those operations mutates ConfigHub or a cluster. OCI publication is additive and content-addressed; retain the output and receipt if it completed.

Do not begin Step 5 unless the portable compiler outputs still verify and the exact OCI receipt passes. Step 5 creates the destination binding and its pending target-fact template. If any portable input changed, create a new controlled portable output directory rather than rewriting evidence for the prior revision.

Previous: Step 3 - commit and push the complete hand-off

Next: Step 5 - materialize the platform in the selected ConfigHub organization
